Wall-mount reader

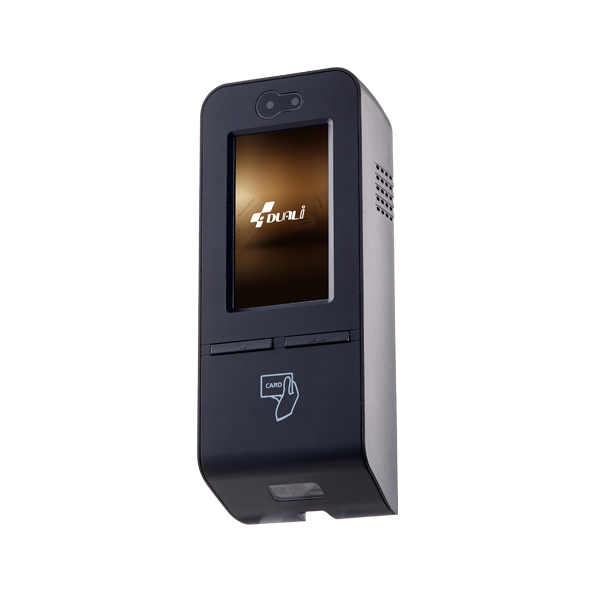

iTOUCH popX

Access terminal support all types of authentication method
* HF Card(RF Card)
* NFC Phone (HCE APP)
* QR (Static, Dynamic QR)

Specifications

CPU

32bit ARM9 RISC Processor

Program Memory / Data Memory

1GBit  Nand Flash / 64MBytes DDR2

Operating System

LINUX

Host Interface

LAN(10/100M Ethernet)

Wiegand 32/34/64/66bit, RS-232 , RS-485

USB (Option)

Contactless Communication

ISO 14443 A/B, ISO 18092 (NFC), Mifare, DESFire, FeliCa, ISO15693

Contact Communication

1 SAM slot (ISO 7816, T=0, T=1)

Barcode/QR scanner

Illumination : 6500K LED

Area image 640 x 480 pixels  Field of View 42° (H) x 35° (V)

Decode range: 35mm-275mm (QR image 20MIL)

Roll/Pitch/Yaw    360°, ±65°, ±60°

Sound

Stereo output 1W

LCD

3” TFT wide (800X480) touch screen (Resistive)

Button

2 Function keys

Door Control I/F

Door status check sensor, Open Switch

Relay(NO,NC,COM), Secure Lock(RS485), Output(for  ICU300N)

Input Power

DC12~24V (12V/1.5A)

Dimension

163 x 65  x 35  mm

Operating Temperature

0 ~60 ℃ ( Max. 50℃ under direct sunlight) / Storage -20 ~ 60℃



Application

Access System
Attendance System
Visitor Management
Elevator Management

Features

No need to bring your staff ID card all the time
Just bring your mobile phone
Scan your NFC Phone or QR code and Go
