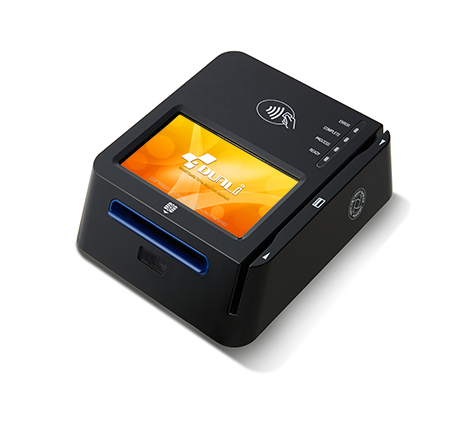

Payment reader

DP-636X

EMV Contact/Contactless Level 1, 2 Certified
MSR & IC & NFC reader & Signature pad & QR
Color TFT LCD / Resistive touch / Soft-PIN PAD
ISO 14443 A/B, Mifare, FeliCa, ISO 15693
Apple Pay / Samsung Pay Compatible

DP-636X.pdf
Download
DP636X_User manual_eng 1.0.pdf
Download

Specifications



 CPU

 32bit ARM-CORTEX A9 RISC processor / 300MHz

 Program Memory  /

 Data Memory

 1GByte Nand Flash / DDR2 64Mbyte(internal)

 O/S

 Linux(Version 3.10.108)

 Host  Communication

 USB 2.0 OTG(1), USB 2.0 Host(1)  RS232 3ch with 5V,  USB to Serial LAN (10/100M Ethernet),

 Micro SD memory card

 Contact EMV L1/L2

 DE-300M2, ISO 7816 1/2/3/4, EMV L1,L2 certified

 Display / Touch

 480*272 RGB  COLOR / Resistive touch

 Operating  Power / Supply

 DC5V@800mA  /  External  Power, output DC 5V /2A

 SAM

 ISO-7816    6 x SAM slot

 MSR

 ISO Track  2,3

 NFC  (OPTION)

 ISO 14443 Type A ,B /MiFare , DESFire,  ISO 18092 (NFC), FeliCa  Contactless  EMV L1

 Operating Temp / Humidity 0°C ~ 50°C  /  5%~90% relative humidity
 Certification KC, EMV  Contact L1/L2 , Contactless EMV L1, L2 certified



Features

▷Multimedia display (AVI, MPEG4) output
